Cleaning the graph

This notebook demonstrate the usage of the main functions for cleaning and fixing topological errors in the GeoDataFrame representing the nodes and the edges of the street network.

import sys
from pathlib import Path

repo_root = Path.cwd().resolve().parents[1]
sys.path.insert(0, str(repo_root))

import cityImage as ci
import matplotlib.pyplot as plt
import matplotlib.font_manager as fm

fm.fontManager.addfont("times.ttf")
plt.rcParams["font.family"] = "Times New Roman"

import osmnx as ox
import cityImage as ci
import pandas as pd
import geopandas as gpd

%matplotlib inline

Functions from the cityImage API used in this notebook

This appendix illustrates the individual network-cleaning and topology-repair steps that clean_network combines, so you can see and control each operation separately.

• network_from_osm — Download a street network from OpenStreetMap and return it as cityImage nodes and edges GeoDataFrames.

• network_from_file — Load a street network from local files into the cityImage nodes/edges schema.

• clean_network — Clean and simplify the network: remove duplicate nodes/edges, pseudo-nodes, dead-ends and self-loops, and repair topology.

• clean_duplicate_edges — Remove edges that duplicate the same pair of from/to nodes.

• simplify_graph — Simplify the graph by merging interstitial (degree-2) nodes while preserving edge geometry.

• remove_disconnected_islands — Drop disconnected sub-networks, keeping the main connected component.

• plot_gdf — Plot a single GeoDataFrame with cityImage styling.

For the full list of functions and their parameters, see the API reference.

# initialise path, names, etc.
epsg = 3003
crs = 'EPSG:'+str(epsg)
place = 'Rivoli, Italy'

Choose between the following methods:

• OSMplace, providing an OSM place name (e.g. City).

• polygon, providing a Polygon (coordinates must be in units of latitude-longitude degrees).

• distance_from_address, providing a precise address and setting the distance parameter.

• distance_from_point, providing point coordinates (in units of latitude-longitude degrees) and setting the distance parameter to build the bounding box around the point.

download_method = 'distance_from_address'
nodes_graph, edges_graph = ci.network_from_osm(place, download_method=download_method, network_type="walk", crs=crs, distance=2000)

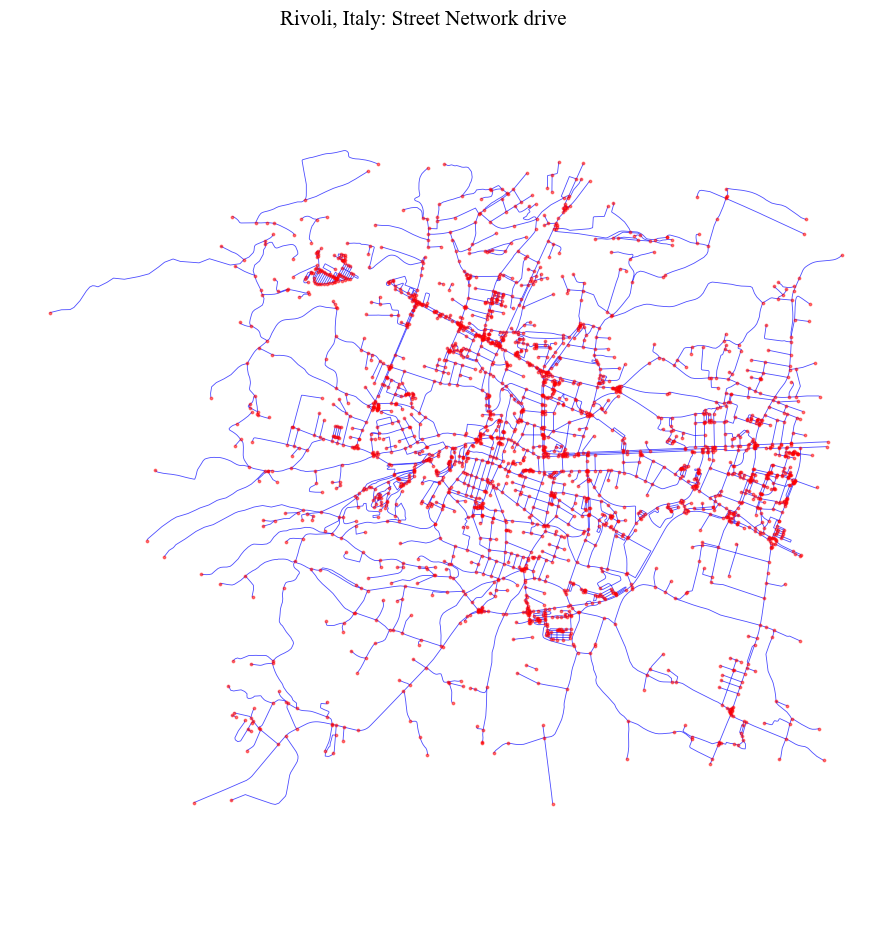

fig = ci.plot_gdf(nodes_graph, black_background = False, figsize = (10,10), title = place+': Street Network drive',
                  geometry_size = 3, color = 'red', alpha = 0.5, base_map_gdf = edges_graph, base_map_color = 'blue',
                  base_map_alpha = 0.7, base_map_geometry_size = 0.6)

/home/jovyan/cityImage/cityImage/plotting/static.py:56: UserWarning: Glyph 8722 (\N{MINUS SIGN}) missing from font(s) Times New Roman.
  self.fig.tight_layout(pad=3.0)

The clean functions handle (through boolean parameters):

• Duplicate geometries (nodes, edges).

• Pseudo-nodes.

• remove_islands: Disconnected islands.

• dead_ends Dead-end street segments.

• self_loops Self-Loops.

• same_vertexes_edges Edges with same from-to nodes, but different geometries.

• fix_topology Splits edges and creates a node where two edges share a vertex that was never turned into a junction. It is primarily useful for poorly formed datasets (OSM-derived networks are usually topologically correct). Edges that merely cross without sharing a vertex — including grade-separated bridges and tunnels — are left untouched.

same_vertexes_edges handles edges with same pair of u-v nodes but different geometries. When True, it derives a center line between the two segments, unless one of the two segments is longer than the other (>10%). In this case, the shorter segment is deleted.

Basic Cleaning (Duplicates and Simplification)

nodes_cleaned, edges_cleaned = ci.clean_network(nodes_graph, edges_graph, dead_ends = False, remove_islands = False,
                                             same_vertexes_edges = False, self_loops = False, fix_topology = False,
                                             preserve_direction = False, nodes_to_keep_regardless = [])

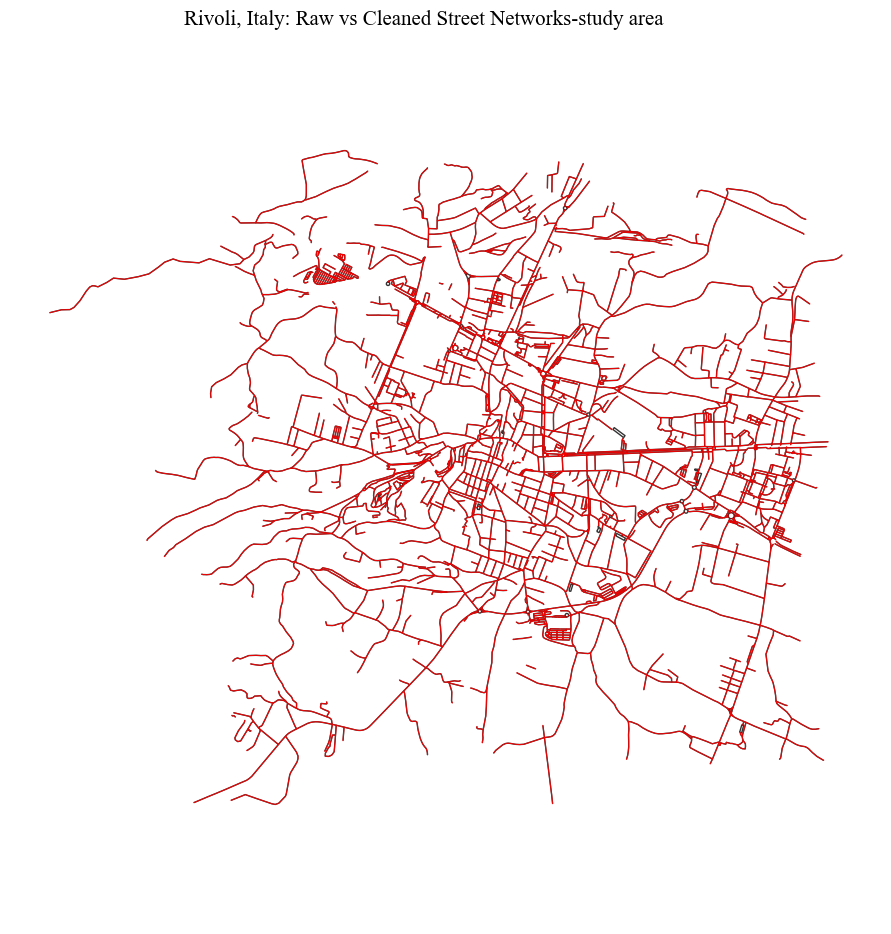

fig = ci.plot_gdf(edges_cleaned, scheme = None,  black_background = False, figsize = (10,10), title =
              place+': Raw vs Cleaned Street Networks-study area', color = 'red', geometry_size = 0.8, alpha = 0.9,
              base_map_gdf = edges_graph, base_map_color = 'black', base_map_alpha = 0.8, base_map_geometry_size = 1)

/home/jovyan/cityImage/cityImage/plotting/static.py:56: UserWarning: Glyph 8722 (\N{MINUS SIGN}) missing from font(s) Times New Roman.
  self.fig.tight_layout(pad=3.0)

Dead-ends and self-loops

nodes_cleaned, edges_cleaned = ci.clean_network(nodes_graph, edges_graph, dead_ends = True, remove_islands = False,
                                             same_vertexes_edges = False, self_loops = True, fix_topology = False,
                                             preserve_direction = False, nodes_to_keep_regardless = [])

fig = ci.plot_gdf(edges_cleaned, scheme = None,  black_background = False, figsize = (10,10), title =
              place+': Raw vs Cleaned Street Networks study area', color = 'red', geometry_size = 0.8, alpha = 0.9,
             base_map_gdf = edges_graph, base_map_color = 'black', base_map_alpha = 0.8, base_map_geometry_size = 1)

/home/jovyan/cityImage/cityImage/plotting/static.py:56: UserWarning: Glyph 8722 (\N{MINUS SIGN}) missing from font(s) Times New Roman.
  self.fig.tight_layout(pad=3.0)

Graph Simplification (Removing only pseudo-nodes)

This step cannot be run directly after downloading data from OSM. In fact, OSM represents a street segment with two links. As a consequence, a dead-end junction is confused for a pseudo-node (1 edge x 2 directions = 2 edges), while actual pseudo-nodes are not identified (2 edges x 2 directions = 4). Therefore, before removing the pseudo-nodes is necessary to remove possible duplicates across the edges.

nodes_cleaned, edges_cleaned = ci.clean_duplicate_edges(nodes_graph, edges_graph, preserve_direction=False)

# simplify the graph
nodes_cleaned, edges_cleaned = ci.simplify_graph(nodes_cleaned, edges_cleaned, nodes_to_keep_regardless = [])

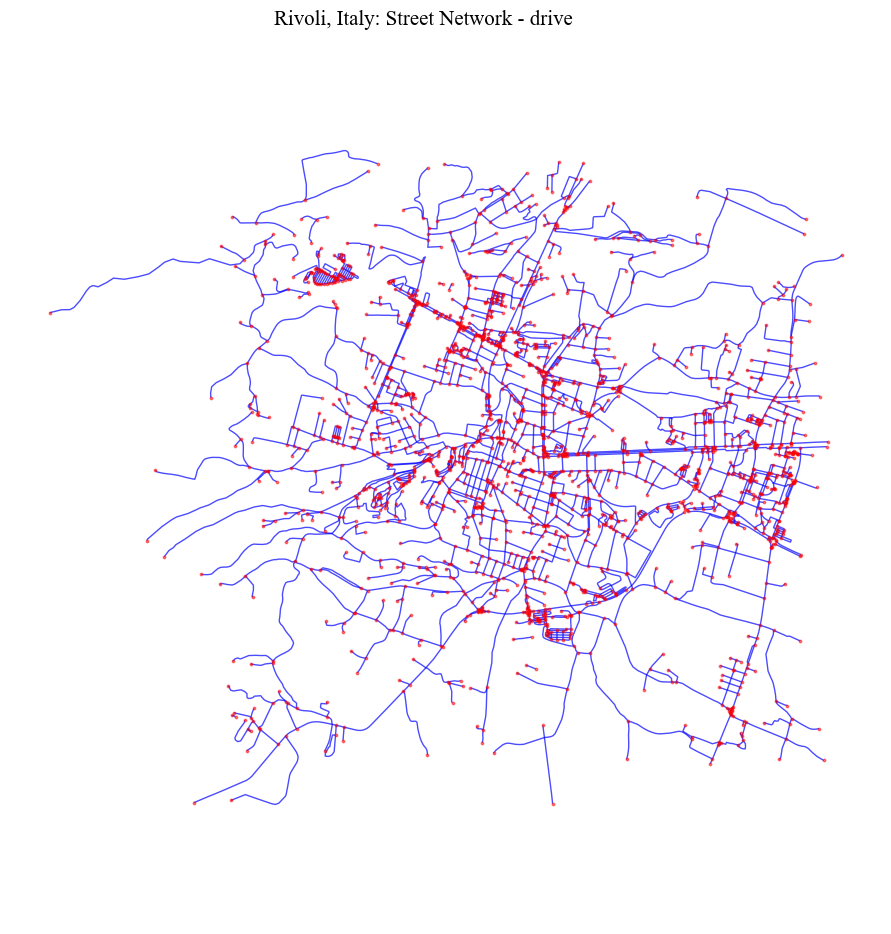

fig = ci.plot_gdf(nodes_cleaned, black_background = False, figsize = (10,10), title = place+': Street Network - drive',
                  geometry_size = 3, color = 'red', alpha = 0.5, base_map_gdf = edges_cleaned, base_map_color = 'blue',
                  base_map_alpha = 0.7, base_map_geometry_size = 1.0)

/home/jovyan/cityImage/cityImage/plotting/static.py:56: UserWarning: Glyph 8722 (\N{MINUS SIGN}) missing from font(s) Times New Roman.
  self.fig.tight_layout(pad=3.0)

Fixing topology

While the clean function performs some checks by default (OSM may present some topological errors at times), when one needs to handle data sources where two edges meet at a shared vertex that was never turned into a node, it is advised to perform a full topological check by setting fix_topology to True. Edges that merely cross without sharing a vertex (e.g. grade-separated bridges/tunnels) are left intact. This step can also be run independently via fix_network_topology.

input_path = '../data/York/York_street_network.gpkg'
dict_columns = {"highway": "type", "oneway": "oneway", "lanes" :None,
            "maxspeed": "maxspeed", "name": "name"}
epsg_york = 2019
nodes_graph, edges_graph = ci.network_from_file(input_path, f"EPSG:{epsg_york}", dict_columns=dict_columns, other_columns=[])

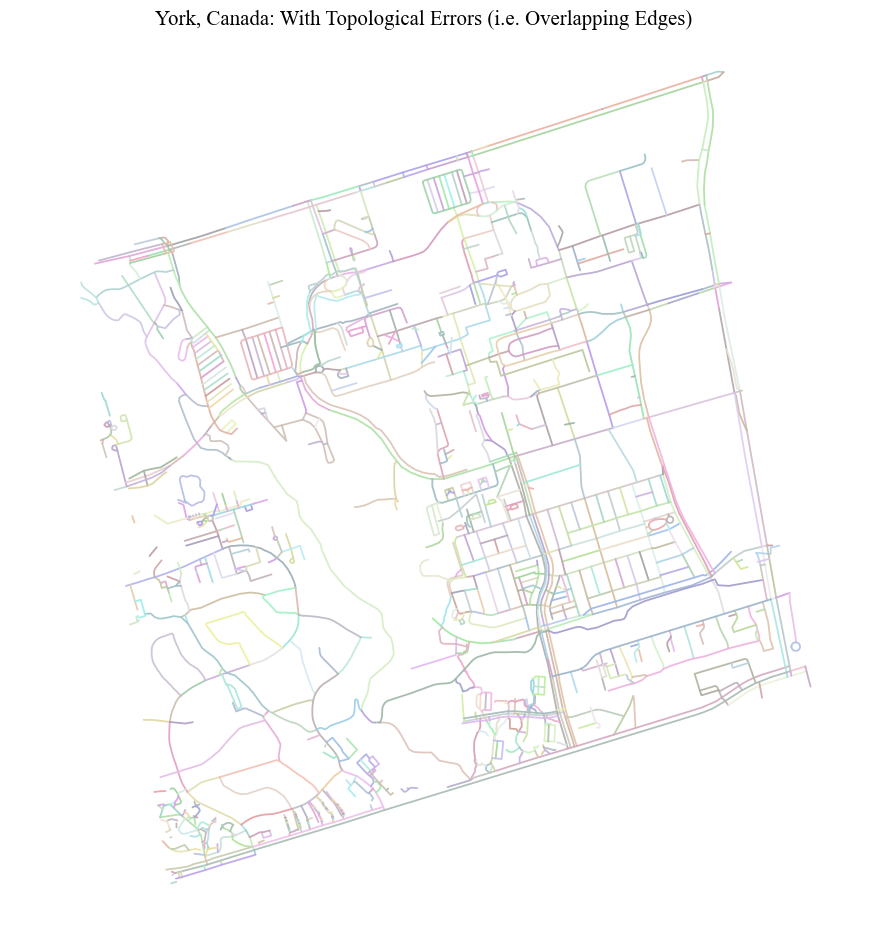

fig = ci.plot_gdf(edges_graph, black_background = False, figsize = (10,10), geometry_size = 1.3, column = 'edgeID',
                 title = "York, Canada: With Topological Errors (i.e. Overlapping Edges)", alpha = 0.9)

/home/jovyan/cityImage/cityImage/plotting/static.py:56: UserWarning: Glyph 8722 (\N{MINUS SIGN}) missing from font(s) Times New Roman.
  self.fig.tight_layout(pad=3.0)

nodes_cleaned, edges_cleaned = ci.clean_network(nodes_graph, edges_graph, dead_ends = False, remove_islands = False,
                                            same_vertexes_edges = False, self_loops = False, fix_topology = True)

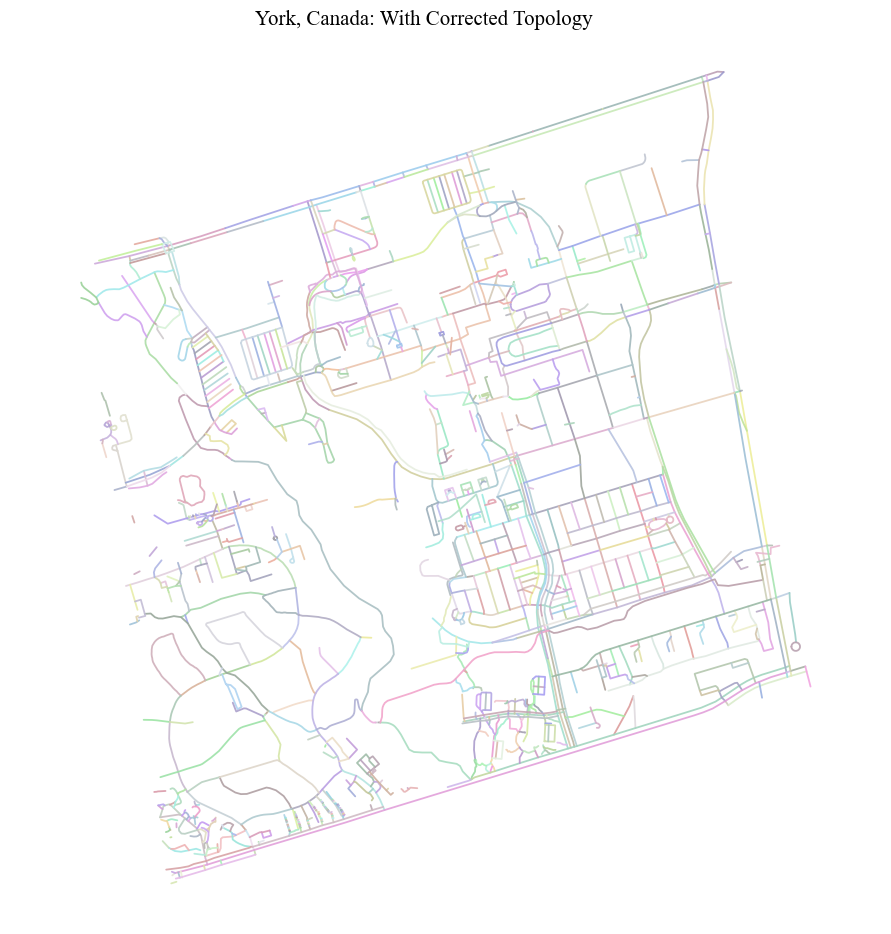

fig = ci.plot_gdf(edges_graph, black_background = False, figsize = (10,10), geometry_size = 1.3, column = 'edgeID',
                 title = "York, Canada: With Corrected Topology", alpha = 0.9)

/home/jovyan/cityImage/cityImage/plotting/static.py:56: UserWarning: Glyph 8722 (\N{MINUS SIGN}) missing from font(s) Times New Roman.
  self.fig.tight_layout(pad=3.0)

Removing disconnected Islands

It may happen that some disconnected set of edges (islands) are included in the representation of the street network. This usually includes few segments that can be disregarded. In this example, a tunnel connection between two urban areas is removed to force the creation of a disconnected island.

place = 'Liverpool, UK'
download_method = 'distance_from_address'
distance = 2000
epsg = 27700
nodes_graph, edges_graph = ci.network_from_osm(place, download_method=download_method, network_type="drive", crs=crs, distance=2000)

# basic cleaning
nodes_graph, edges_graph = ci.clean_network(nodes_graph, edges_graph, dead_ends = False, remove_islands = False,
                                             same_vertexes_edges = False, self_loops = False, fix_topology = False,
                                             preserve_direction = False, nodes_to_keep_regardless = [])

# forcing a disconnected Island
edges_graph = edges_graph[edges_graph.tunnel != 1]
nodes_cleaned, edges_cleaned = ci.remove_disconnected_islands(nodes_graph, edges_graph)

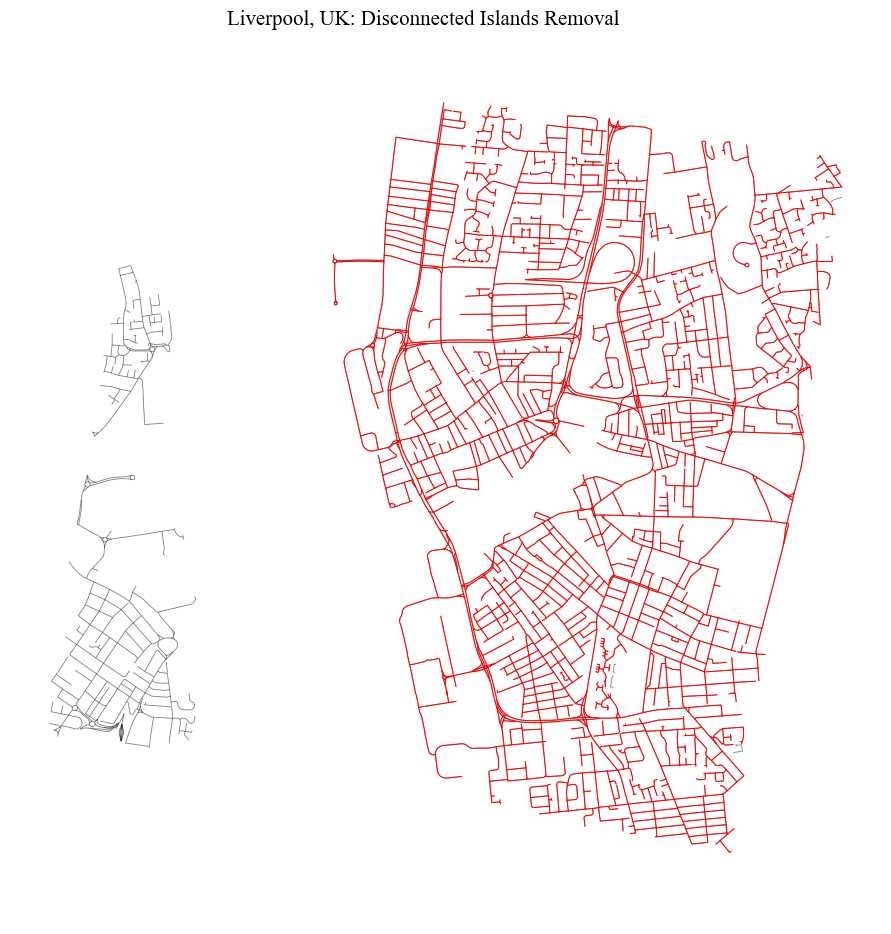

fig = ci.plot_gdf(edges_cleaned, scheme = None,  black_background = False, figsize = (10,10), title =
              place+': Disconnected Islands Removal', color = 'red', geometry_size = 0.8, alpha = 0.9,
             base_map_gdf = edges_graph, base_map_color = 'black', base_map_alpha = 0.5, base_map_geometry_size = 0.6)

/home/jovyan/cityImage/cityImage/plotting/static.py:56: UserWarning: Glyph 8722 (\N{MINUS SIGN}) missing from font(s) Times New Roman.
  self.fig.tight_layout(pad=3.0)
