Districts (with OSM data)#
District should be derived using a car-based street network and for an area that is larger than the case study area (see below, e.g. for the city centre of London one should use Greater London)
[10]:
import sys
from pathlib import Path
repo_root = Path.cwd().resolve().parents[1]
sys.path.insert(0, str(repo_root))
import matplotlib.pyplot as plt
import matplotlib.font_manager as fm
fm.fontManager.addfont("times.ttf")
plt.rcParams["font.family"] = "Times New Roman"
import cityImage as ci
[3]:
import osmnx as ox, networkx as nx, matplotlib.cm as cm, pandas as pd, numpy as np
import geopandas as gpd
from shapely.geometry import Point, mapping
%matplotlib inline
import warnings
warnings.simplefilter(action="ignore")
pd.options.display.float_format = '{:20.2f}'.format
pd.options.mode.chained_assignment = None
import cityImage as ci
Functions from the cityImage API used in this notebook#
This notebook derives districts (Lynch’s regions) from a car-based street network by partitioning it into communities and turning those partitions into region polygons, then optionally assigns the districts back to a walkable network.
network_from_osm — Download a street network from OpenStreetMap and return it as cityImage
nodesandedgesGeoDataFrames.clean_network — Clean and simplify the network: remove duplicate nodes/edges, pseudo-nodes, dead-ends and self-loops, and repair topology.
dual_gdf — Build the dual-graph GeoDataFrames, where street segments become nodes (their centroids) and intersections become links.
plot_gdf — Plot a single GeoDataFrame with cityImage styling.
dual_graph_fromGDF — Build the dual NetworkX graph used for angular (dual) analysis.
identify_regions — Identify districts/regions from a graph partition (community detection).
rand_cmap — Build a random categorical colormap (useful for districts/partitions).
plot_grid_gdf_columns — Plot several columns of one GeoDataFrame as a grid of maps.
polygonise_partitions — Convert edge partitions into region polygons.
district_to_nodes_from_polygons — Assign network nodes to districts using region polygons.
amend_nodes_membership — Reassign nodes in disconnected districts to adjacent connected districts.
find_gateways — Detect gateway nodes located at the boundary between districts.
For the full list of functions and their parameters, see the API reference.
Acquiring the Street Network#
[4]:
city_name = 'Muenster'
epsg = 25832
crs = 'EPSG:'+str(epsg)
Download from OSM the drive** network**
Choose between the following methods:
OSMplace, provide an OSM place name (e.g. City).polygon, provide an WGS polygon of the case-study area.distance_from_address, provide a precise address and define parameterdistance(which is otherwise not necessary)
[5]:
place = 'Muenster, Germany'
download_method = 'OSMplace'
distance = None
nodes_graph, edges_graph = ci.network_from_osm(place, download_method=download_method, network_type="drive", crs=crs, distance=distance)
nodes_graph, edges_graph = ci.clean_network(nodes_graph, edges_graph, dead_ends = True, remove_islands = True,
self_loops = True, same_vertexes_edges = True)
# Creating and saving the dual geodataframes
nodesDual_graph, edgesDual_graph = ci.dual_gdf(nodes_graph, edges_graph, epsg)
Visualisation. The cell below maps the result using the cityImage plotting helpers such as plot_gdf; see the Plotting section of the API reference for all styling options.

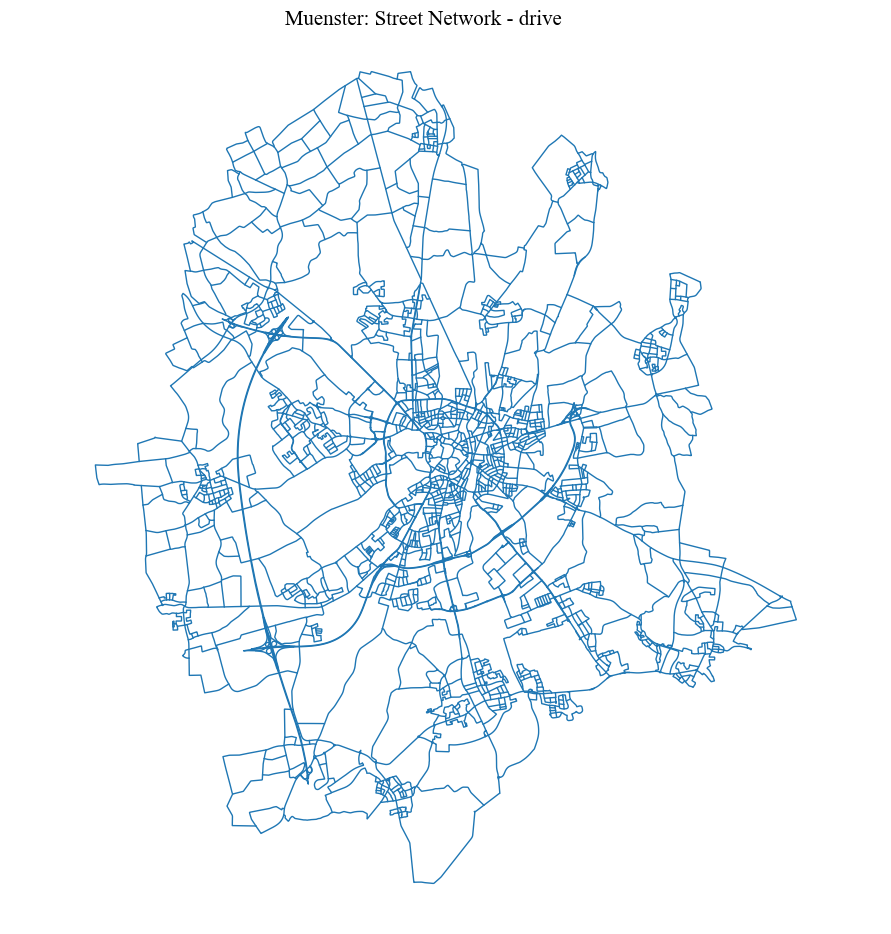

[11]:
fig = ci.plot_gdf(edges_graph, black_background = False, figsize = (10,10), title = city_name+': Street Network - drive')
District identification#
[7]:
# creating the dual_graph
dual_graph = ci.dual_graph_fromGDF(nodesDual_graph, edgesDual_graph)
Different weights can be used to extract the partitions. None indicates that no weights will be used (only topological relationships will matter). The function returns a GeoDataFrame with partitions assigned to edges, with column named as p_name_weight (e.g. p_length).
[12]:
!pip install python-louvain
Collecting python-louvain
Using cached python_louvain-0.16-py3-none-any.whl
Requirement already satisfied: networkx in /opt/conda/lib/python3.12/site-packages (from python-louvain) (3.4.2)
Requirement already satisfied: numpy in /opt/conda/lib/python3.12/site-packages (from python-louvain) (2.2.6)
Installing collected packages: python-louvain
Successfully installed python-louvain-0.16
[13]:
weights = ['length', 'rad', None]
districts = edges_graph.copy()
for weight in weights:
districts = ci.identify_regions(dual_graph, districts, weight = weight)
Visualisation. The cell below maps the result using the cityImage plotting helpers such as plot_gdf; see the Plotting section of the API reference for all styling options.
[14]:

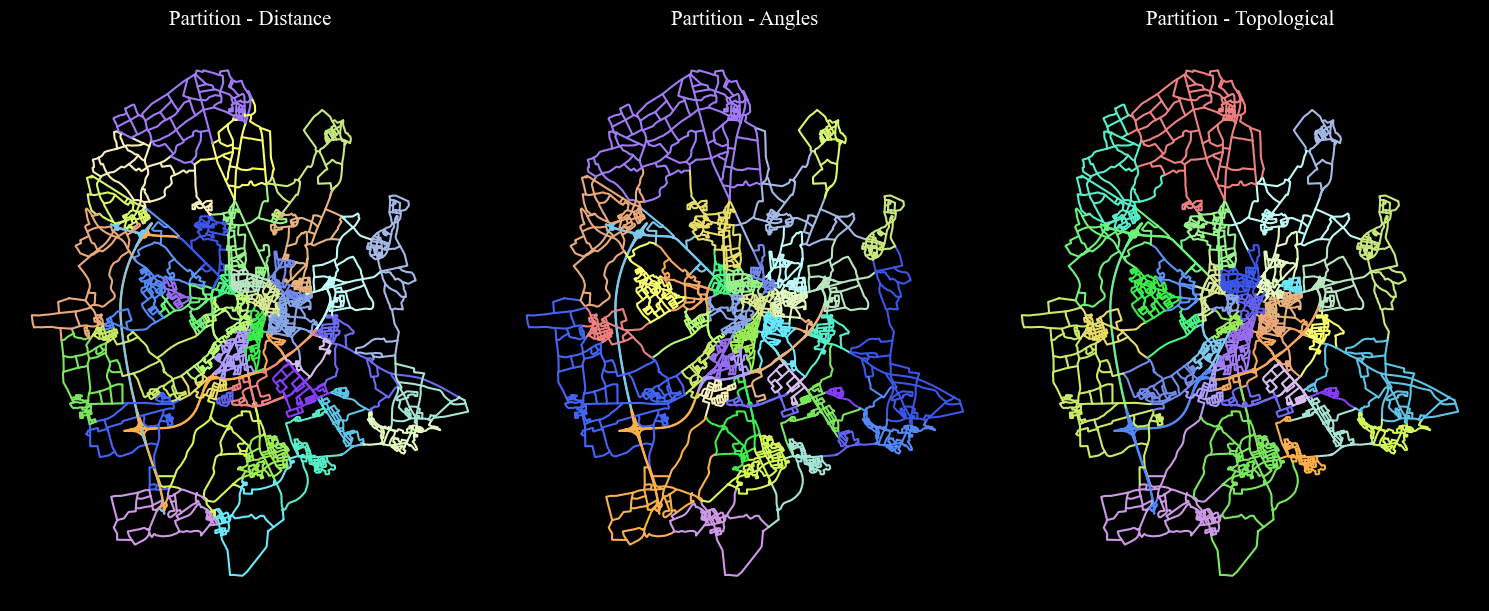

columns = ['p_length','p_rad', 'p_topo']
titles = ['Partition - Distance', 'Partition - Angles', 'Partition - Topological']
nlabels = max([len(districts[column].unique()) for column in columns])
cmap = ci.rand_cmap(nlabels = nlabels, type_color='bright')
fig = ci.plot_grid_gdf_columns(districts, columns = columns, titles = titles, geometry_size = 1.5, cmap = cmap, black_background = True,
legend = False, figsize = (15, 10), ncols = 3, nrows = 1)

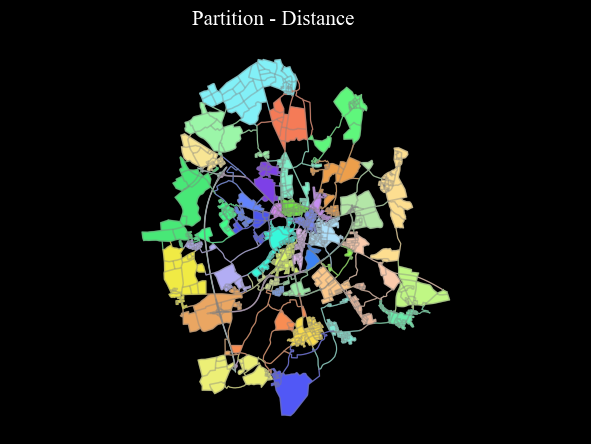

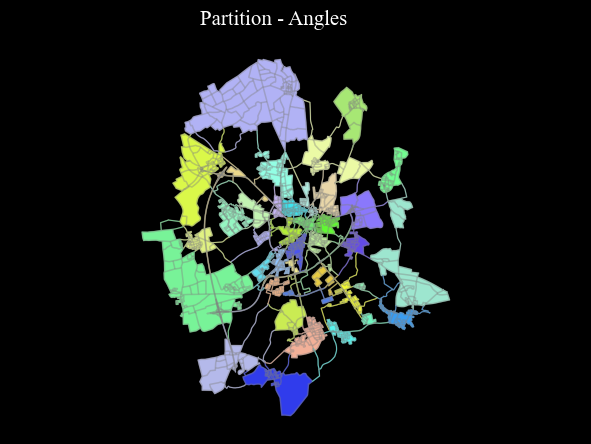

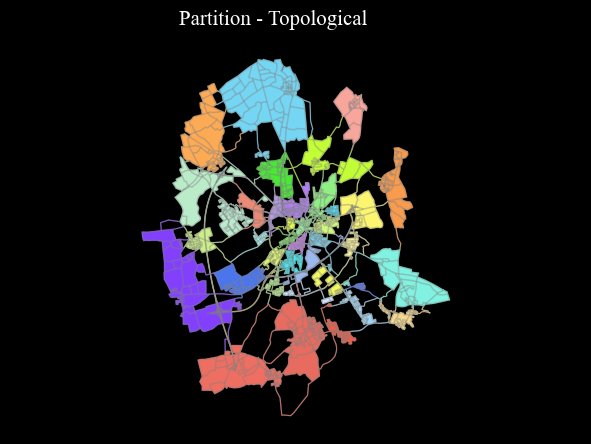

[15]:
for n, column in enumerate(columns):
cmap = ci.rand_cmap(nlabels = len(districts[column].unique()), type_color='bright')
partitions = ci.polygonise_partitions(districts, column, convex_hull = False)
ci.plot_gdf(partitions, column = column, cmap = cmap, title = titles[n], black_background = True, figsize = (7, 5),
base_map_gdf = districts, base_map_color = 'grey', base_map_zorder = 1)
Exporting. The results are written to disk as GeoPackage files with GeoPandas’ to_file, ready to be reused in later notebooks or in external GIS software.
[18]:
# provide path
from pathlib import Path
# provide path
output_dir = Path("../output")
output_dir.mkdir(parents=True, exist_ok=True)
output_file = output_dir / f"{city_name}_edges_districts.gpkg"
districts_export = districts.copy()
for col in districts_export.columns:
if col != districts_export.geometry.name:
districts_export[col] = districts_export[col].apply(
lambda x: ", ".join(map(str, x)) if isinstance(x, (list, tuple, set)) else x
)
districts_export.to_file(output_file, driver="GPKG")
Assigning regions to the Pedestrian Street Network#
Case-study area (pedestrian walkable network)
This set of functions assigns regions to a walkable network for further modelling in Pedestrian Simulation, for example. The simply identification of regions (districts) from the urban configuration ends above.
Get the pedestrian network from OSM:
Choose between the following methods:
OSMplace, provide an OSM place name (e.g. City).polygon, provide an WGS polygon of the case-study area.distance_from_address, provide a precise address and define parameterdistance(which is otherwise not necessary)
[19]:
place = 'Domplatz, Muenster, Germany' ## must be different from the area used for the drive network
download_method = 'distance_from_address'
distance = 2500
nodes_graph_ped, edges_graph_ped = ci.network_from_osm(place, download_method=download_method, network_type="walk", crs=crs, distance=distance)
nodes_graph_ped, edges_graph_ped = ci.clean_network(nodes_graph_ped, edges_graph_ped, dead_ends = True,
remove_islands = True, self_loops = True, same_vertexes_edges = True)
Visualisation. The cell below maps the result using the cityImage plotting helpers such as plot_gdf; see the Plotting section of the API reference for all styling options.

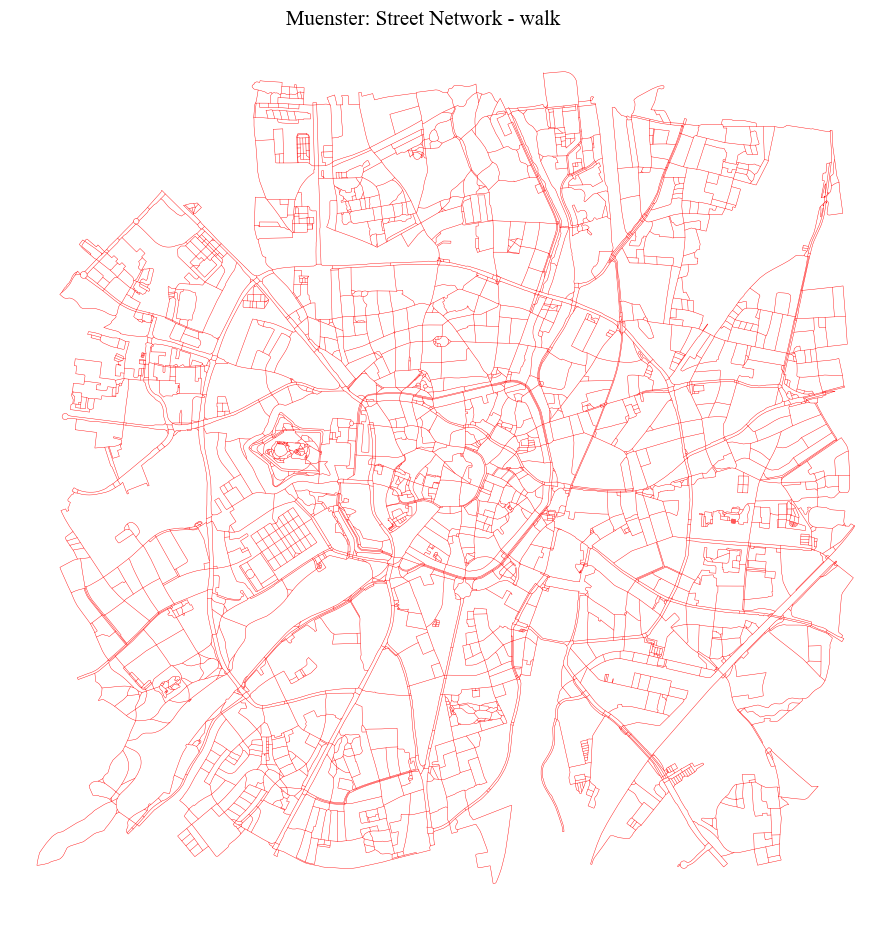

[20]:
fig = ci.plot_gdf(edges_graph_ped, black_background = False, figsize = (10,10), title = city_name+': Street Network - walk',
color = 'red', geometry_size = 0.3)

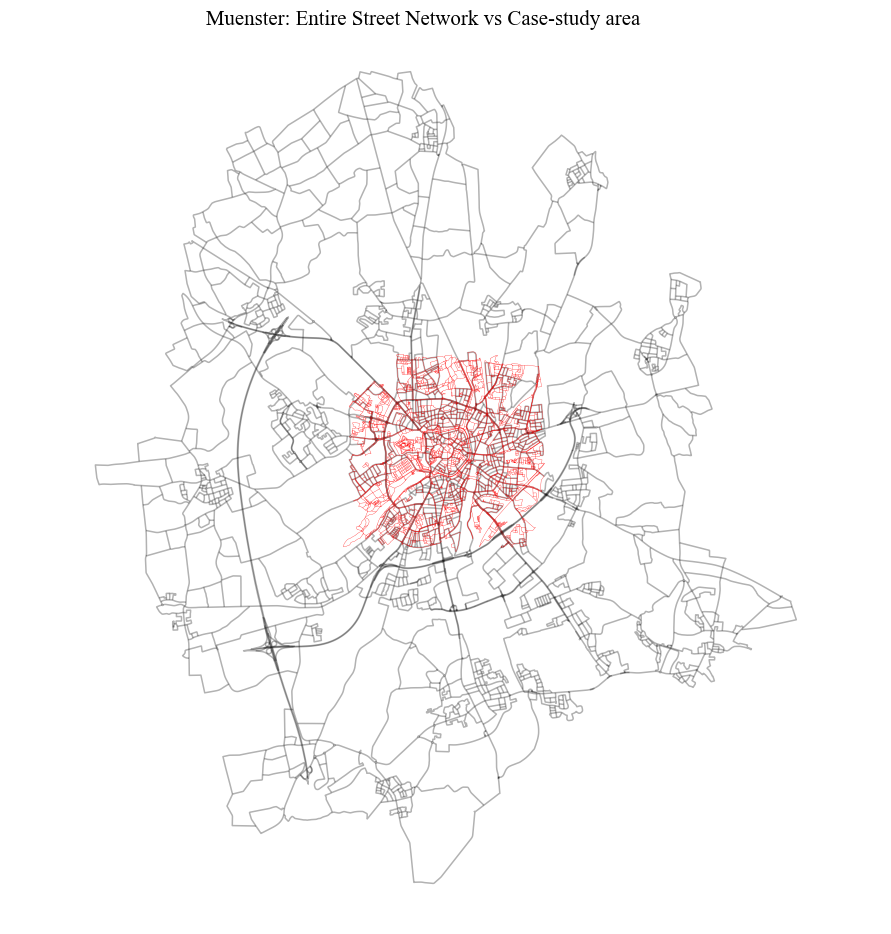

[21]:
fig = ci.plot_gdf(edges_graph_ped, scheme = None, black_background = False, figsize = (10,10), title =
city_name+': Entire Street Network vs Case-study area', color = 'red', geometry_size = 0.2,
base_map_gdf = edges_graph, base_map_color = 'black', base_map_alpha = 0.3)
Assigning nodes and edges in the pedestrian network to the Partitions#
[23]:
# choosing the type of partition to be used
column = 'p_length'
min_size_district = 10
[24]:
dc = dict(districts[column].value_counts())
## ignore small portions
to_ignore = {k: v for k, v in dc.items() if v <= min_size_district}
tmp = districts[~((districts[column].isin(to_ignore))| (districts[column] == 999999))].copy()
partitions = ci.polygonise_partitions(tmp, column)
nodes_graph_ped = ci.district_to_nodes_from_polygons(nodes_graph_ped, partitions, column)
nodes_graph_ped[column] = nodes_graph_ped[column].astype(int)
Visualisation. The cell below maps the result using the cityImage plotting helpers such as plot_gdf; see the Plotting section of the API reference for all styling options.

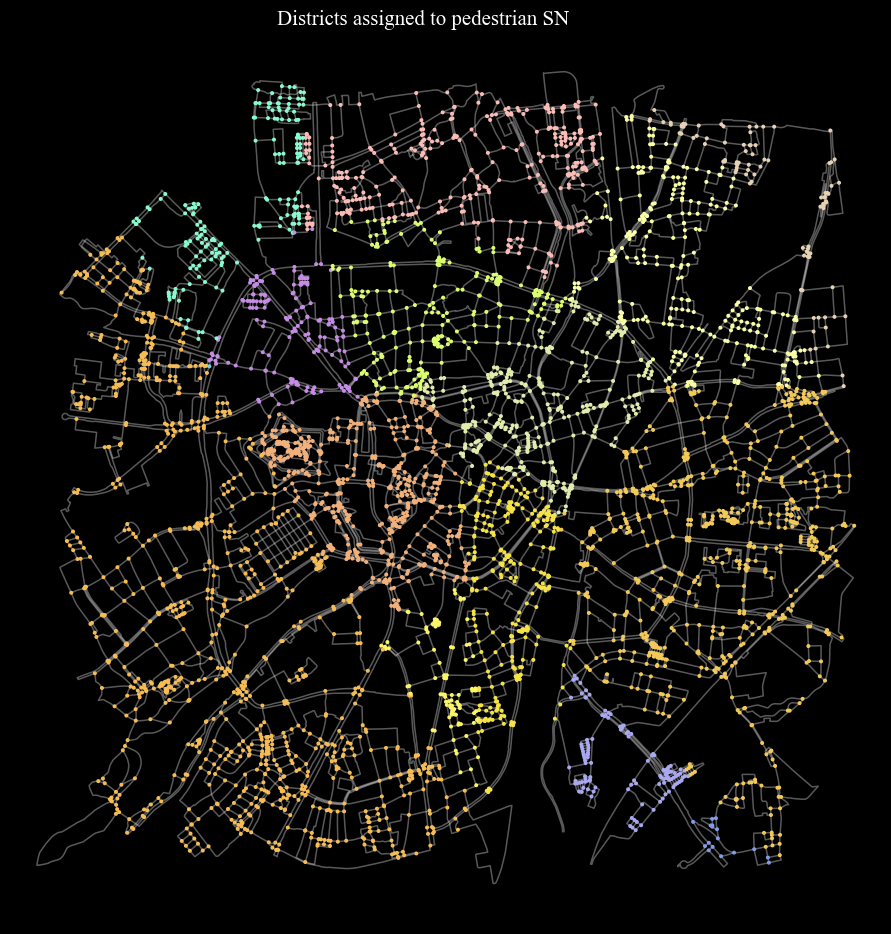

[25]:
cmap = ci.rand_cmap(nlabels = len(nodes_graph_ped[column].unique()), type_color='bright')
fig = ci.plot_gdf(nodes_graph_ped, column = column, title = 'Districts assigned to pedestrian SN', cmap = cmap,
geometry_size = 3.5, base_map_gdf = edges_graph_ped, base_map_color = 'white', base_map_alpha = 0.35,
black_background = True, legend = False, figsize = (10,10))
Fixing disconnected districts and assigning nodes to existing connected districts#
[26]:
nodes_graph_ped = ci.amend_nodes_membership(nodes_graph_ped, edges_graph_ped, column, min_size_district)
# assigning gateways
nodes_graph_ped = ci.find_gateways(nodes_graph_ped, edges_graph_ped, column)

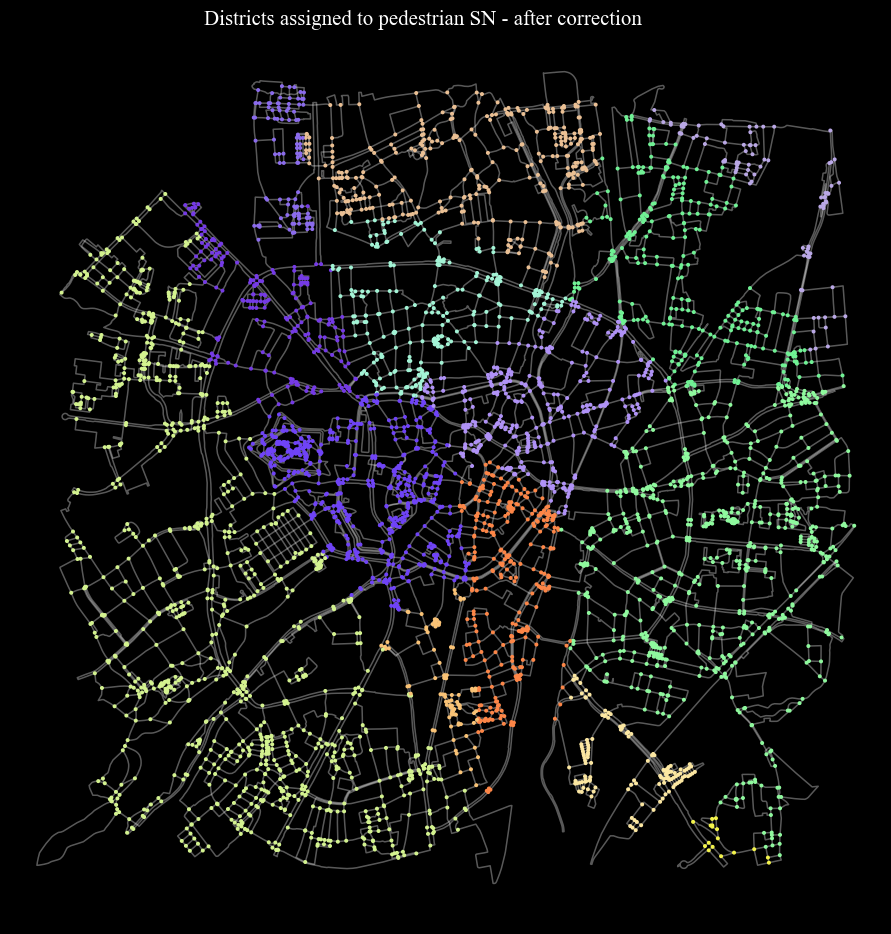

Final Sub-division in Districts/Regions#
[27]:
cmap = ci.rand_cmap(nlabels = len(nodes_graph_ped[column].unique()), type_color='bright')
fig = ci.plot_gdf(nodes_graph_ped, column = column, title = 'Districts assigned to pedestrian SN - after correction',
cmap = cmap, geometry_size = 3.5, base_map_gdf = edges_graph_ped, base_map_color = 'white',
base_map_alpha = 0.35, black_background = True, legend = False, figsize = (10,10))
Exporting. The results are written to disk as GeoPackage files with GeoPandas’ to_file, ready to be reused in later notebooks or in external GIS software.
[29]:
nodes_graph_ped['district'] = nodes_graph_ped[column].astype(int)
nodes_graph_ped.to_file(output_path+"_nodes_ped.gpkg", driver="GPKG")
edges_graph_ped.to_file(output_path+"_edges_ped.gpkg", driver="GPKG")
