Districts (with OSM data)

District should be derived using a car-based street network and for an area that is larger than the case study area (see below, e.g. for the city centre of London one should use Greater London)

import osmnx as ox, networkx as nx, matplotlib.cm as cm, pandas as pd, numpy as np
import geopandas as gpd
from shapely.geometry import Point, mapping
%matplotlib inline

import warnings
warnings.simplefilter(action="ignore")
pd.options.display.float_format = '{:20.2f}'.format
pd.options.mode.chained_assignment = None

import cityImage as ci

Acquiring the Street Network

city_name = 'Muenster'
epsg = 25832
crs = 'EPSG:'+str(epsg)

Download from OSM thedrive** network**

Choose between the following methods:

• OSMplace, provide an OSM place name (e.g. City).

• polygon, provide an WGS polygon of the case-study area.

• distance_from_address, provide a precise address and define parameter distance (which is otherwise not necessary)

place = 'Muenster, Germany'
download_method = 'OSMplace'
distance = None

nodes_graph, edges_graph = ci.get_network_fromOSM(place, download_method, 'drive', epsg, distance = distance)
nodes_graph, edges_graph = ci.clean_network(nodes_graph, edges_graph, dead_ends = True, remove_islands = True,
                            self_loops = True, same_vertexes_edges = True)

# Creating and saving the dual geodataframes
nodesDual_graph, edgesDual_graph = ci.dual_gdf(nodes_graph, edges_graph, epsg)

Visualisation

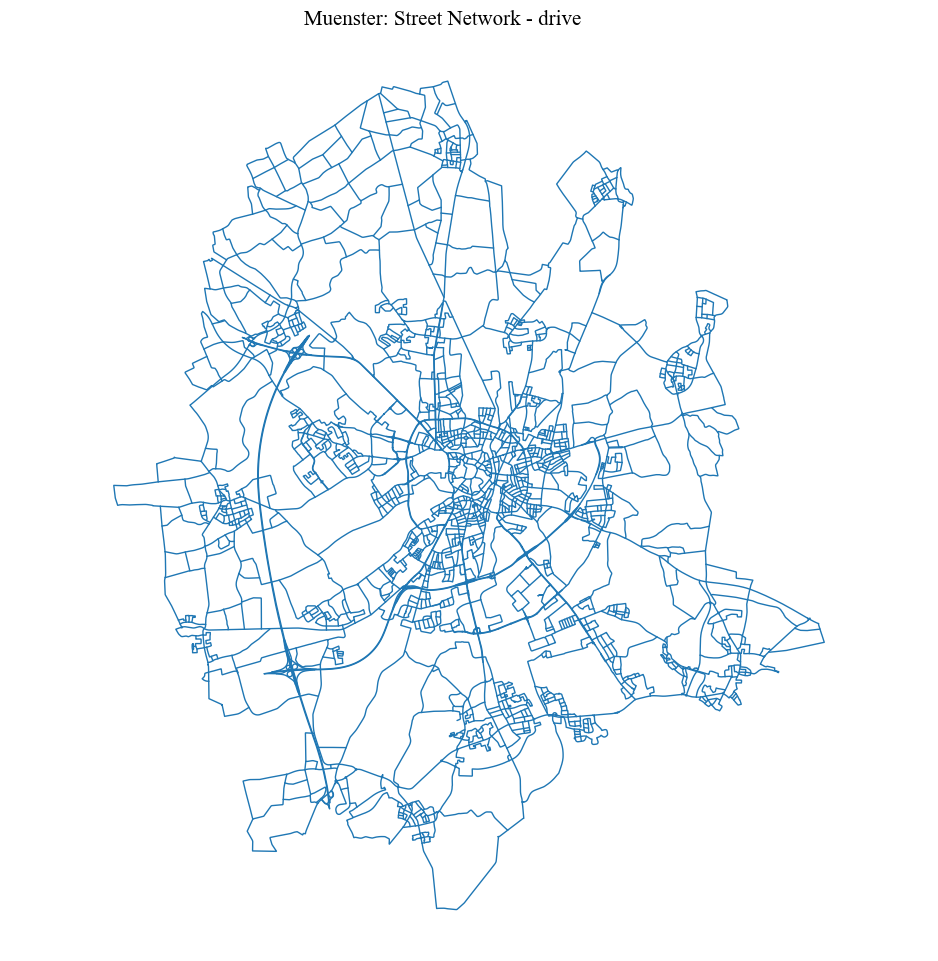

fig = ci.plot_gdf(edges_graph, black_background = False, figsize = (10,10), title = city_name+': Street Network - drive')

District identification

# creating the dual_graph
dual_graph = ci.dual_graph_fromGDF(nodesDual_graph, edgesDual_graph)

Different weights can be used to extract the partitions. None indicates that no weights will be used (only topological relationships will matter). The function returns a GeoDataFrame with partitions assigned to edges, with column named as p_name_weight (e.g. p_length).

weights = ['length', 'rad', None]
districts = edges_graph.copy()
for weight in weights:
    districts = ci.identify_regions(dual_graph, districts, weight = weight)

Visualisation

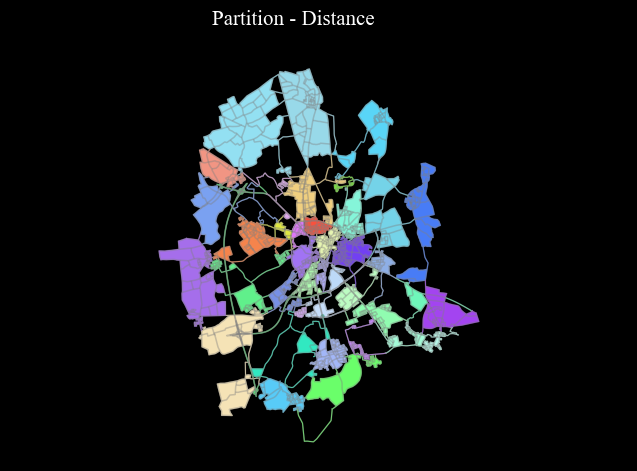

columns = ['p_length','p_rad', 'p_topo']
titles = ['Partition - Distance', 'Partition - Angles', 'Partition - Topological']

nlabels = max([len(districts[column].unique()) for column in columns])
cmap = ci.rand_cmap(nlabels = nlabels, type_color='bright')

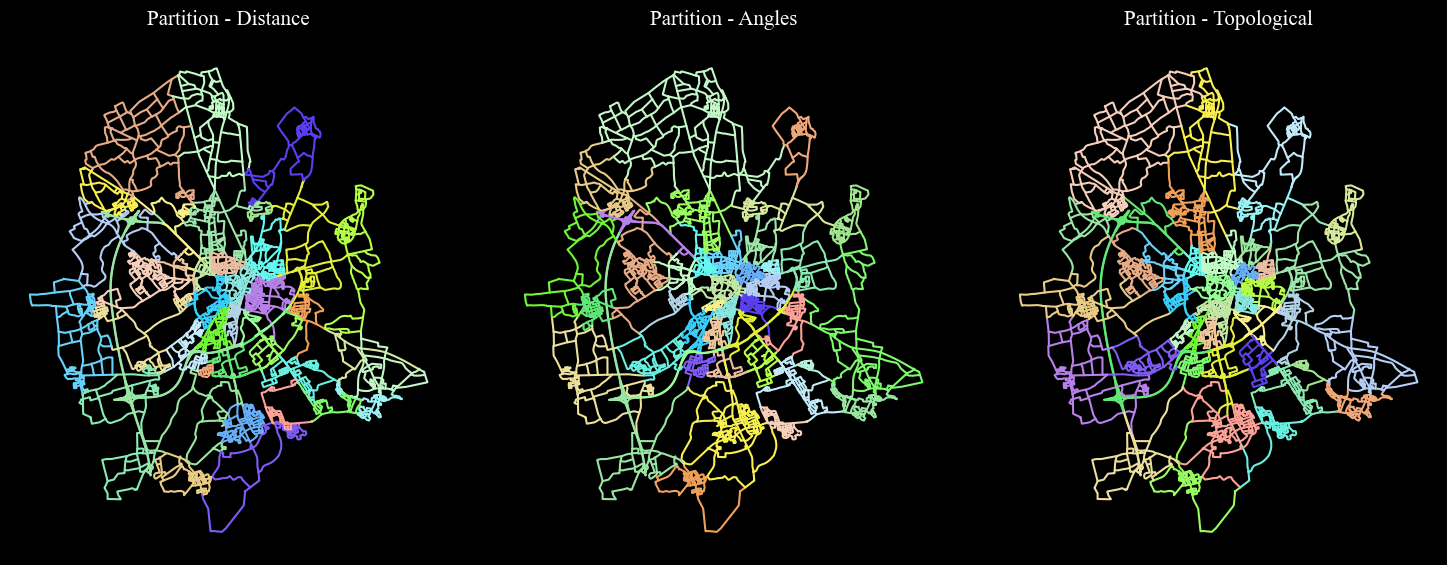

fig = ci.plot_grid_gdf_columns(districts, columns = columns, titles = titles, geometry_size = 1.5, cmap = cmap, black_background = True,
                  legend = False, figsize = (15, 10), ncols = 3, nrows = 1)

for n, column in enumerate(columns):
    cmap = ci.rand_cmap(nlabels = len(districts[column].unique()), type_color='bright')

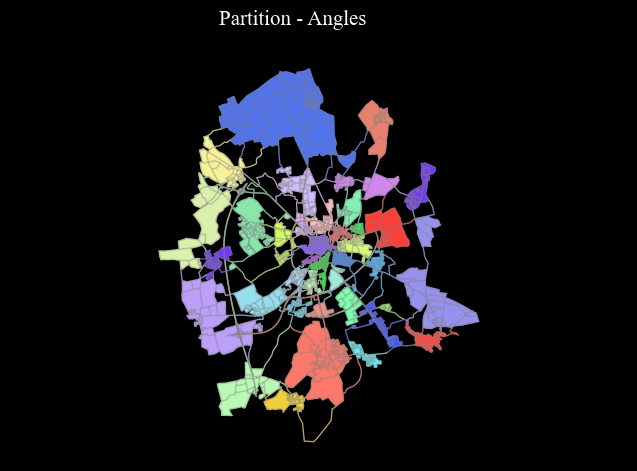

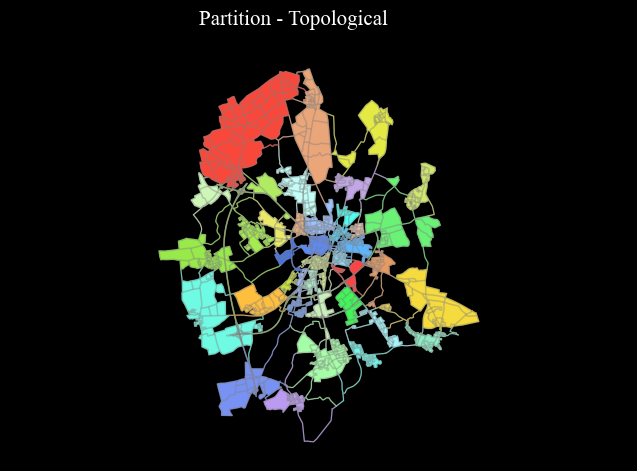

    partitions = ci.polygonise_partitions(districts, column, convex_hull = False)
    ci.plot_gdf(partitions, column = column, cmap = cmap, title =  titles[n], black_background = True,  figsize = (7, 5),
               base_map_gdf = districts, base_map_color = 'grey', base_map_zorder = 1)

Exporting

# provide path
output_path = '../output/'+city_name
ci.remove_lists_columns(districts).to_file(output_path+"_edges_districts.gpkg",  driver="GPKG")

Assigning regions to the Pedestrian Street Network

Case-study area (pedestrian walkable network)

This set of functions assigns regions to a walkable network for further modelling in Pedestrian Simulation, for example. The simply identification of regions (districts) from the urban configuration ends above.

Get the pedestrian network from OSM:

Choose between the following methods:

• OSMplace, provide an OSM place name (e.g. City).

• polygon, provide an WGS polygon of the case-study area.

• distance_from_address, provide a precise address and define parameter distance (which is otherwise not necessary)

place = 'Domplatz, Muenster, Germany' ## must be different from the area used for the drive network
download_method = 'distance_from_address'
distance = 2500

nodes_graph_ped, edges_graph_ped = ci.get_network_fromOSM(place, download_method, 'walk', epsg, distance = distance)
nodes_graph_ped, edges_graph_ped = ci.clean_network(nodes_graph_ped, edges_graph_ped, dead_ends = True,
                                remove_islands = True, self_loops = True, same_vertexes_edges = True)

Visualisation

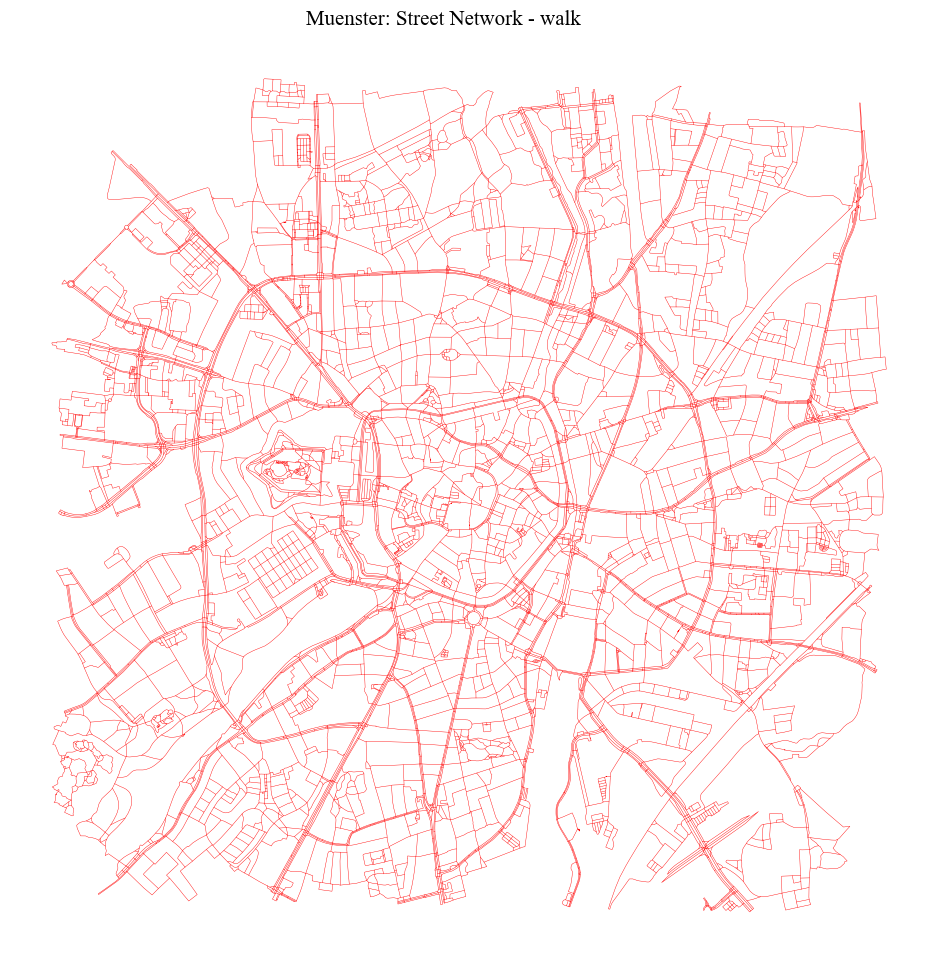

fig = ci.plot_gdf(edges_graph_ped, black_background = False, figsize = (10,10), title = city_name+': Street Network - walk',
                  color = 'red', geometry_size = 0.3)

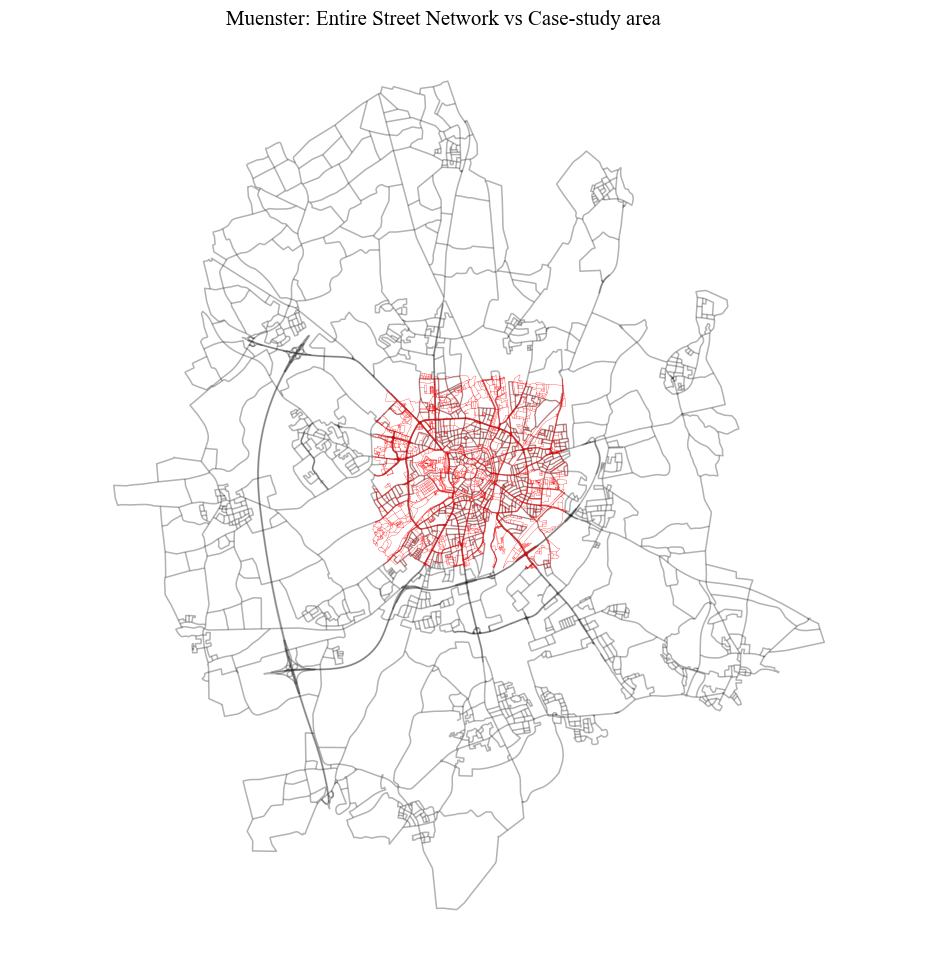

fig = ci.plot_gdf(edges_graph_ped, scheme = None,  black_background = False, figsize = (10,10), title =
              city_name+': Entire Street Network vs Case-study area', color = 'red', geometry_size = 0.2,
             base_map_gdf = edges_graph, base_map_color = 'black', base_map_alpha = 0.3)

Assigning nodes and edges in the pedestrian network to the Partitions

# choosing the type of partition to be used
column = 'p_length'
min_size_district = 10

dc = dict(districts[column].value_counts())

## ignore small portions
to_ignore = {k: v for k, v in dc.items() if v <= min_size_district}
tmp = districts[~((districts[column].isin(to_ignore))| (districts[column] == 999999))].copy()

partitions = ci.polygonise_partitions(tmp, column)
nodes_graph_ped = ci.district_to_nodes_from_polygons(nodes_graph_ped, partitions, column)
nodes_graph_ped[column] = nodes_graph_ped[column].astype(int)

Visualisation

cmap = ci.rand_cmap(nlabels = len(nodes_graph_ped[column].unique()), type_color='bright')

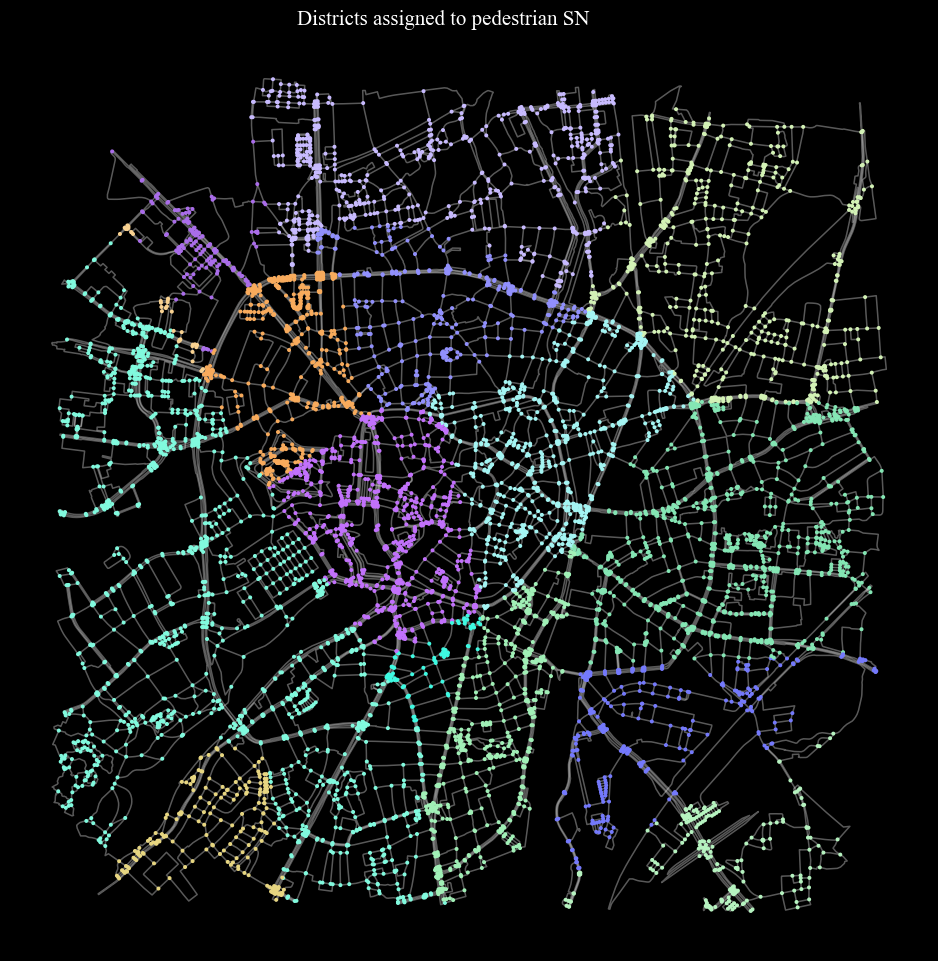

fig = ci.plot_gdf(nodes_graph_ped, column = column, title = 'Districts assigned to pedestrian SN', cmap = cmap,
                  geometry_size = 3.5, base_map_gdf = edges_graph_ped, base_map_color = 'white', base_map_alpha = 0.35,
                black_background = True, legend = False, figsize = (10,10))

Fixing disconnected districts and assigning nodes to existing connected districts

nodes_graph_ped = ci.amend_nodes_membership(nodes_graph_ped, edges_graph_ped, column, min_size_district)

# assigning gateways
nodes_graph_ped = ci.find_gateways(nodes_graph_ped, edges_graph_ped, column)

Final Sub-division in Districts/Regions

cmap = ci.rand_cmap(nlabels = len(nodes_graph_ped[column].unique()), type_color='bright')

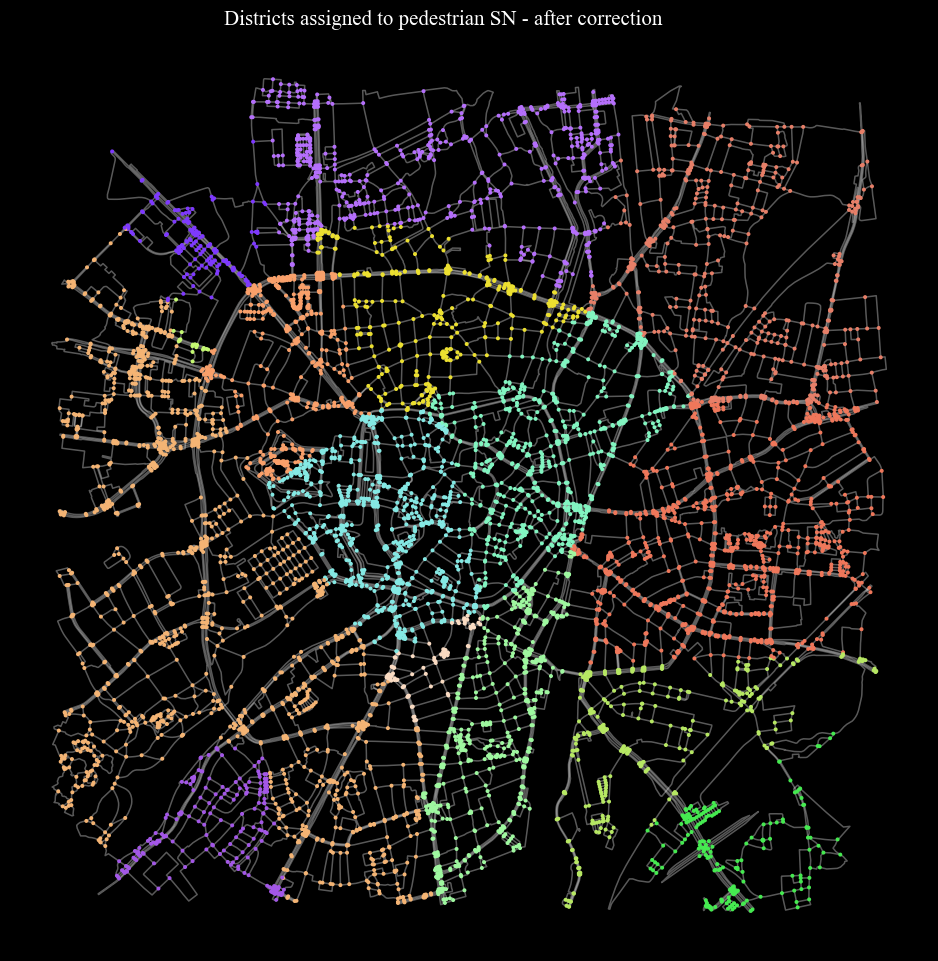

fig = ci.plot_gdf(nodes_graph_ped, column = column, title = 'Districts assigned to pedestrian SN - after correction',
               cmap = cmap, geometry_size = 3.5, base_map_gdf = edges_graph_ped, base_map_color = 'white',
                  base_map_alpha = 0.35, black_background = True, legend = False, figsize = (10,10))

Exporting

nodes_graph_ped['district'] = nodes_graph_ped[column].astype(int)
nodes_graph_ped.to_file(output_path+"_nodes_ped.gpkg", driver="GPKG")
edges_graph_ped.to_file(output_path+"_edges_ped.gpkg", driver="GPKG")
